Transformers – made in Germany
For every requirement. For every industry.

Our complete package of commitment, quality, flexibility and speed is impressive. Our services and products – Made in Germany – are recommended across the globe.

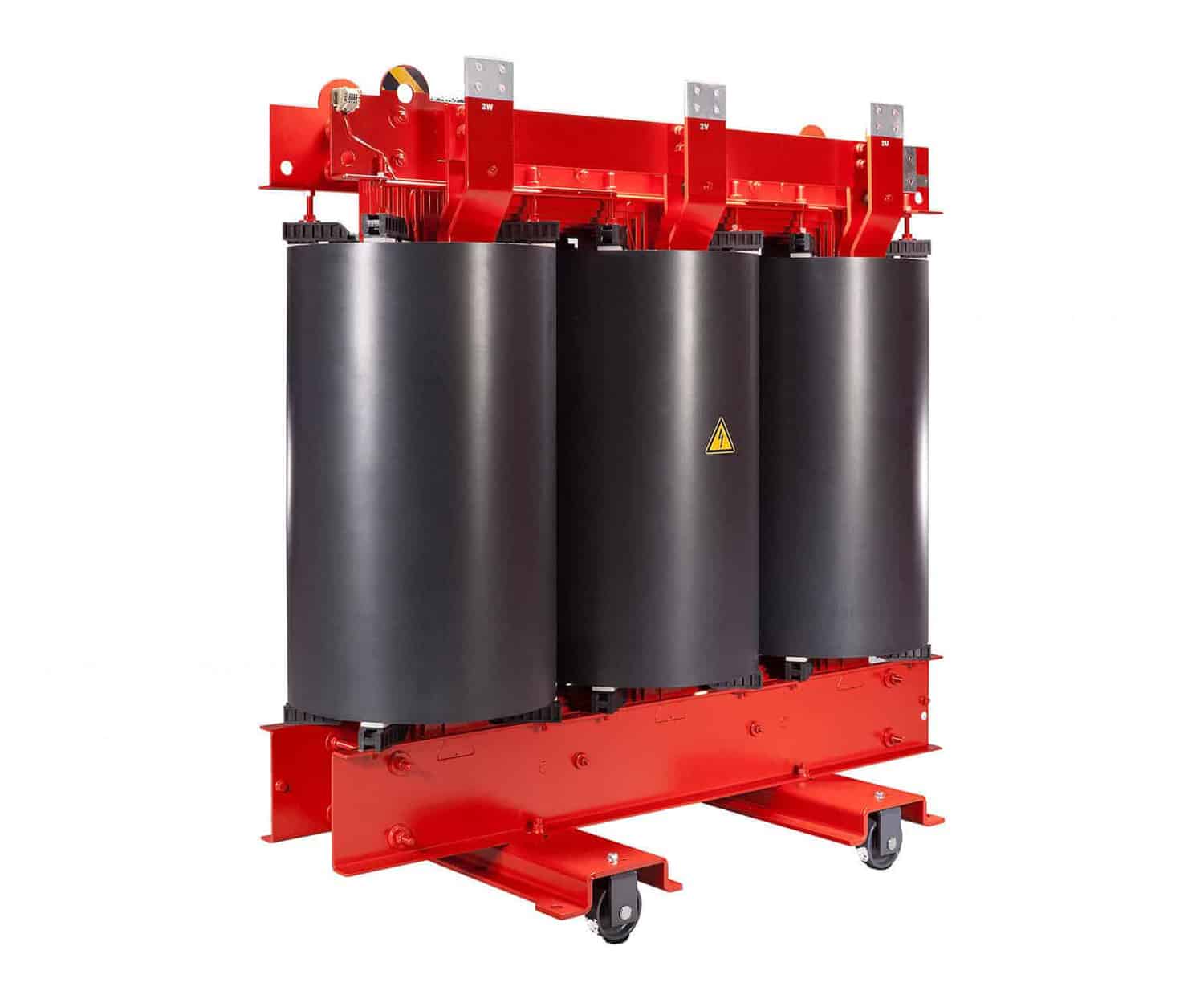

Cast resin transformers

Cast resin transformers by HTT are mechanically and thermally stable against changing loads, short circuits and extreme climatic conditions. They fulfil the requirements of climate class C5, ambient class E4 and fire class F1. Thanks to our different construction series concepts, we have the right solution to meet the individual requirements of all of your application cases.

In addition to the ‘standard’ series for power distribution transformers with vacuum casting for the HV coils and Prepreg insulation for the LV coils, we also have the ‘Modular’ and ‘Individual’ series to supply you with the perfect transformer for your requirements: for instance, higher mechanical strength and resistance to aggressive atmospheres thanks to the vacuum casting of the LV coils. We use aluminium or copper as a conducting material in our transformers depending on the customer requirements and specifications.

C5-, E4- and F1-certified

More information about our construction series concept →

Power distribution transformers

Power up to 20 MVA
UM up to 52 kV Voltage
With losses according to the Ecodesign Directive 2009/125/EC – VO 548/2014 (Level 1 and at the customer’s request according to Level 2, NEW: DIN EN 50588-1)
Conducting material aluminium or copper
HV coils cast under vacuum
LV coils cast under vacuum or for outputs up to 4 MVA with Prepreg insulation

Converter transformers

Power up to 20 MVA
UM up to 52 kV Voltage
Conducting material aluminium or copper
HV coils cast under vacuum
LV coils cast under vacuum or with Prepreg insulation
For 6-pulse inverter operation
As double-storey transformers for 12 or 24-pulse inverter operation
As triple-storey transformers for 18-pulse inverter operation
Step-up / step-down transformers
Transformers for voltage sequencing control units

Special transformers

Regulating transformers

With on load tap changer (OLTC) for grid adjustment or to regulate low voltage (primary control)
With no load tap changer (NLTC) on LV-side to regulate the low voltage in load-free state

Starting transformers

For low and high-voltage motors for reduction of the grid load during the starting process

Testing transformers

Up to 120 kV
Up to 180 kA eff. short-time operation
For one and three-phase high-voltage or high-current test fields

Please find more information under downloads

HTT-Cast resin transformers – All advantages in our factsheet – download here:

Personally responsible

You have one contact partner that deploys all resources at HTT for you and is very familiar with your requirements and specifications.

Custom fitted

Thanks to an in-depth understanding of your requirements, we are able to deliver products in the precise output level you require. And we also surprise you with added value.

Straight to target

From your enquiry through to the submission of our bid, the engineering work and delivery – you will be astounded by our speed. Our recipe for success is to deliver great results much faster than expected!

Request offer now

to the inquiry form →

Or contact us. We will be happy to advise you personally.

Michael Steines
Phone +49 5541 700 852
michael.steines@htt-trafo.de

Service & accessories

Regardless of the sector you work in or how specific your needs, at HTT you profit from fast response times and made-to-measure solutions. We have matching accessories and high-quality spare parts for each of our products.

Certified quality

None of our components enter the next production stage without being tested first. Reputed external test and certification institutes also audit us at regular intervals. Our transformers can also be supplied with a GOST certificate on request.

We manufacture in line with the requirements of the certificate ISO 9001 and the respective applicable norms (for instance, the Ecodesign Directive 2009/125/EC, (EU)No.548/2014/EC – DIN EN 50588-1). Our cast resins transformers also satisfy the requirements of the fire, climate and ambient classes.

Thanks to our decades of experience with customers in the offshore sector, we can also implement the requirements of the various classification companies.

Made in Germany →

Our transformers are only designed and manufactured by our own highly qualified specialists at our site in central Germany. Thanks to the necessary know-how, years of experience and attention to detail, we are passionate about producing reliable and durable products.

Reputed customers →

Long-standing loyal customers rely on the quality of HTT transformers and their experience with our company. During the course of supplier audits, they evaluate our performance capability, delivery punctuality and quality and always give us top grades.

Transparent production →

Be our guest at a meeting or works inspection, we will be happy to take you on a tour of our production plant.
